Main uses
This product can be used in animal protein, vegetable protein, fermentation liquor, coffee, tea, edible oil, fruit juice, pectin, wine and starch processing in food industry; drilling fluid, industrial wastewater, municipal wastewater, and plastic classification in environmental protection field; ore milling, organic chemical industry, polymer industry, inorganic chemical industry and alcohol production in petrochemical field.
Main features
?♦ Automatic, continuous, and long-term operation, closed operation can be achieved.
?♦ High production capacity and compact structure.
?♦ It is greatly adaptable to materials.
?♦ Vertical engine base, stable operation and low vibration speed.
?♦ Two-motor control, drum and spiral speed is stepless adjustable.
Configuration selection
?♦ Vertical and low platform engine base
?♦ Single head, double head, and multiple head spiral conveyor
?♦ Spiral conveyor blade is coated with high hardness alloy and embeded with high hardness alloy slice
?♦ Cycloid gear, planetary gear and hydraulic differential
?♦ Single motor, double motor, and hydraulic motor
?♦ common motor, explosion-proof motor and variable frequency motor
?♦ Frequency converting control and fluid coupling
?♦ Grease self-lubrication, circulating forced lubrication
?♦ Nitrogen protection, vibration protection, speed monitoring, overload protection, electromechanical interlocking
Materials:
?♦ Carbon steel, corrosion-resistant stainless steel and dual-phase steel
Working process chart

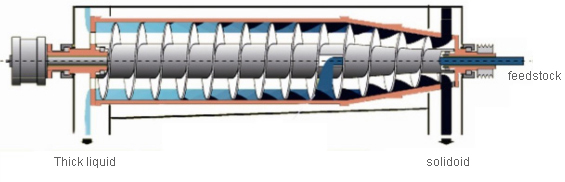

liquid-solid two phase dehydration/cleaning type

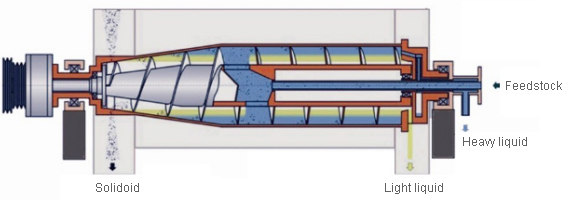

liquid-liquid-solid three phase separation type

Technical parameters

Model	Drum diameter (mm)	Drum speed (r/min)	Separation factor	Aspect ratio	Throughput capacity (T/h)	Motor power (kW)	Weight (kg)	Size (L*W*H mm)
LW260×800	260	5000	3640	3.1	4	11	900	1800*800*1000
LW300×1200	300	4000	2688	4	6	11	1200	2100*900*1100
LW350×1500	350	3800	2850	4.3	8	15	2000	3200*1000*1300
LW400×1200	400	3500	2750	3	10	15	2200	3250*1000*1100
LW400×1600	400	3500	2750	4	10	18.5	2400	3800*1000*1250
LW400×1800	400	3500	2750	4.4	12	22	2500	4000*1000*1250
LW450×1800	450	3300	2740	4	20	30	3000	4200*1200*1350
LW450×2150	450	3300	2740	4.8	25	37	3500	4600*1200*1350
LW500×2000	500	3000	2500	4	35	45	4000	4650*1300*1500
LW530×2280	530	2800	2350	4.3	50	45	4300	4800*1300*1500
LW650×2600	650	2400	2100	4	80	55	6500	4900*1450*1650
LW720×2500	720	2200	1950	3.5	90	75	7000	5000*1600*1700
